Fortelia
FLAT ROOF WITH SINGLE METAL SHEET
Panel designed for the construction of flat or low-slope roofs, featuring excellent waterproofing properties and, at the same time high thermal insulation values. It is a panel with corrugated metal sheet on the internal side and a synthetic membrane (in PVC or TPO) on the outside. Insulation with polyurethane foam.
Fortelia provides innovative solutions for flat roofs, leveraging the unique geometric cross-section of our products to deliver superior performance.
Our high-performance roofing systems are built on two core principles: exceptional load resistance and fast installation. This allows us to create roofs that are not only durable but also efficient to build.
The GreenROOF system, is engineered with improved static performance and high resistance to water infiltration, which adds significant value and longevity to your roof. Moreover, our systems are designed to maximize the utility of your flat roof, providing an ideal surface for installing renewable energy systems.
The Fortelia Synth panel is an all-in-one solution for building high-performance flat or low-slope roofs. It's engineered to provide exceptional waterproofing and superior thermal insulation in a single, easy-to-install product.
This innovative panel features a corrugated metal sheet on the interior for structural strength and a durable synthetic membrane (made from either PVC or TPO) on the exterior for complete weather protection. The core is filled with high-quality polyurethane foam, ensuring excellent thermal insulation to help regulate your building's temperature and improve energy efficiency.
FORTELIA ROOF PERFORMANCE FIRE
| EXTERNAL FACING | |
| Material | Pre-painted steel metal sheet |
| Minimum Thickness | 0.5mm |
| Maximum Thickness | 1.0 mm |
| INTERNAL FACING | |
| Material | Pre-painted steel metal sheet |
| Minimum Thickness | 0.5 mm |
| Maximum Thickness | 0.6 mm |
| ROCK WOOL INSULATION | |
| Type | Rock Wool |
| Density | 100 kg/m |
| Panel Nominal Thickness (mm) | 80 | 100 | 120 | 150 | 170 | 200 |
| U-Value (W/m3K | 0.40 | 0.33 | 0.28 | 0.23 | 0.20 | 0.18 |
| Weight (0.6 + 0.6 mm) | 22.6 | 24.6 | 26.6 | 29.6 | 31.6 | 34.6 |
| Weight (0.8 + 0.6 mm) | 24.9 | 26.9 | 28.9 | 31.9 | 33.9 | 36.9 |
| Fire Reaction | A2-s1; d0 |
FORTELIA FLAT ROOF

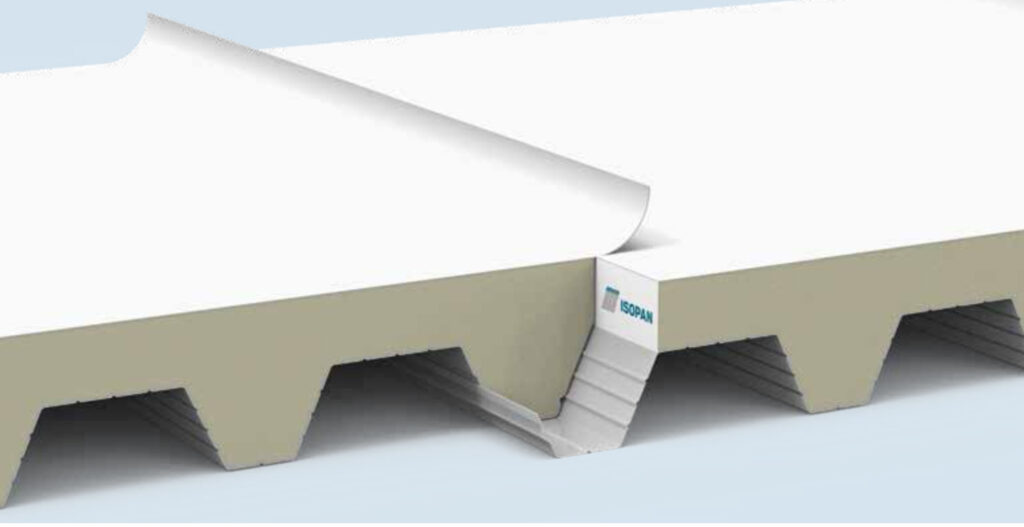

Patented system of pre-coupling between the sheet and synthetic PVC OR TPO membrane:
- Quick installations
- Adhesion of the membrane to the metal sheet
- Mechanical and foot traffic resistance of the surface membrane
- Resistance to water infiltrations
- No risk of interstitial humidity between sheet and membrane
