Product Description

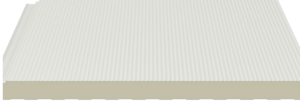

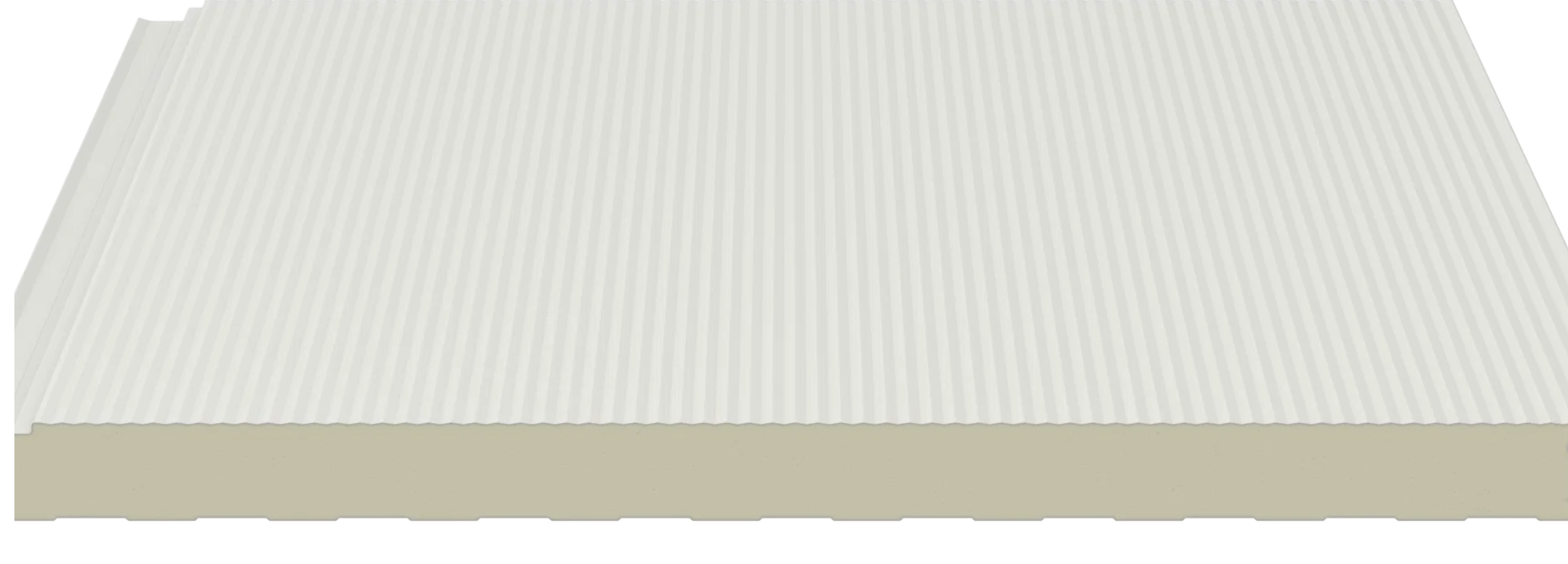

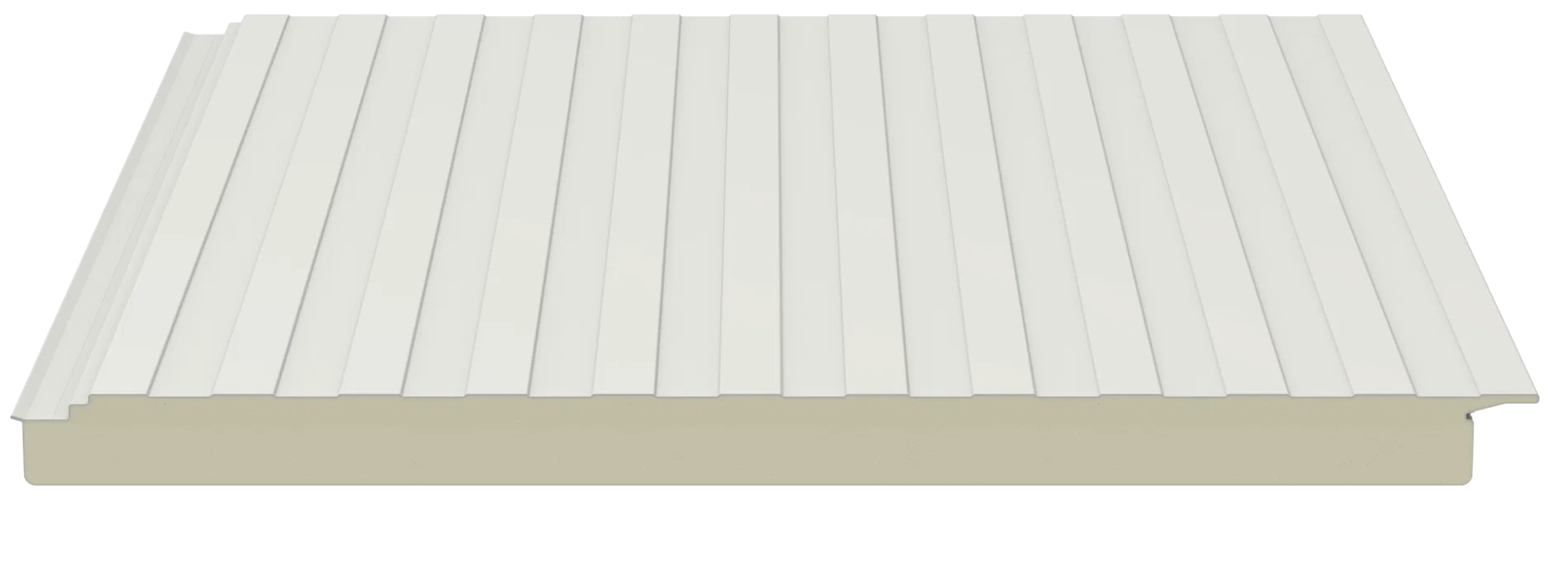

A double-steel sheet wall panel, insulated with polyisocianurate rigid foam. The tongue-and-grove joint completed by concealed fasteners and saddle clip. External faces are available in striated, box, and flat profiles. The internal face is standard with the box profile.
Isoparete is a sandwich panel characterized by a hidden fixing joint system, used for industrial and commercial building walls, and perfect solution for cold storage industries. Available with butyl seal placed in plant.
Benefits
– Gasket barrier to prevent vapor leaks
– High mechanical strength & puncture resistance
– High thermal resistance for controlled temperatures – Up to 8” thick
– Possibility of combination with compatible panels
Suitable For
Industrial
Cold Storage
Commercial
Architectural
Specialized

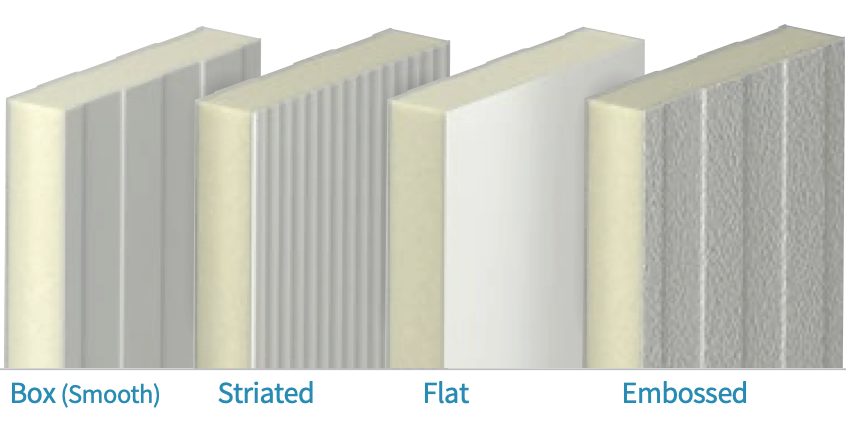

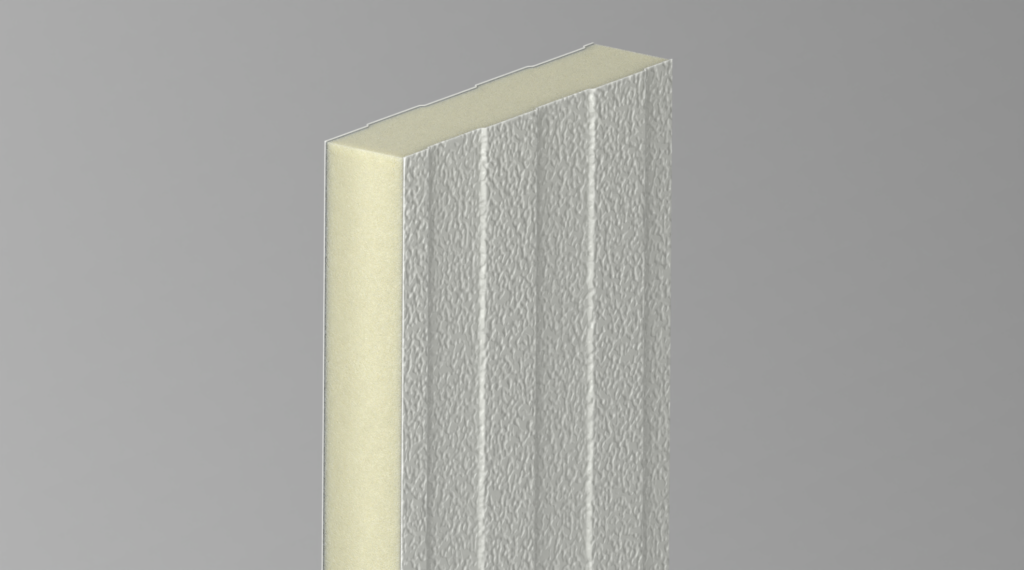

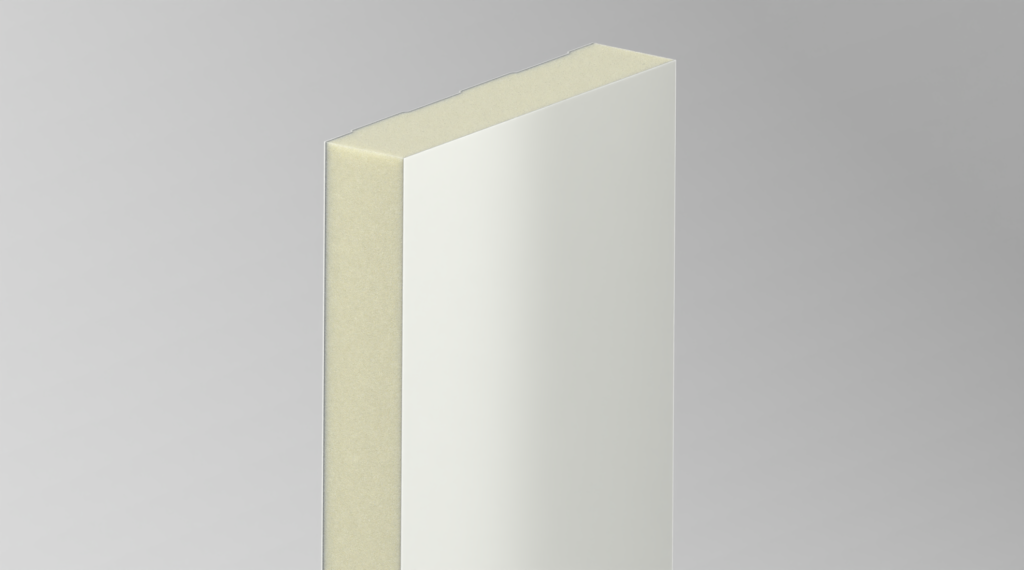

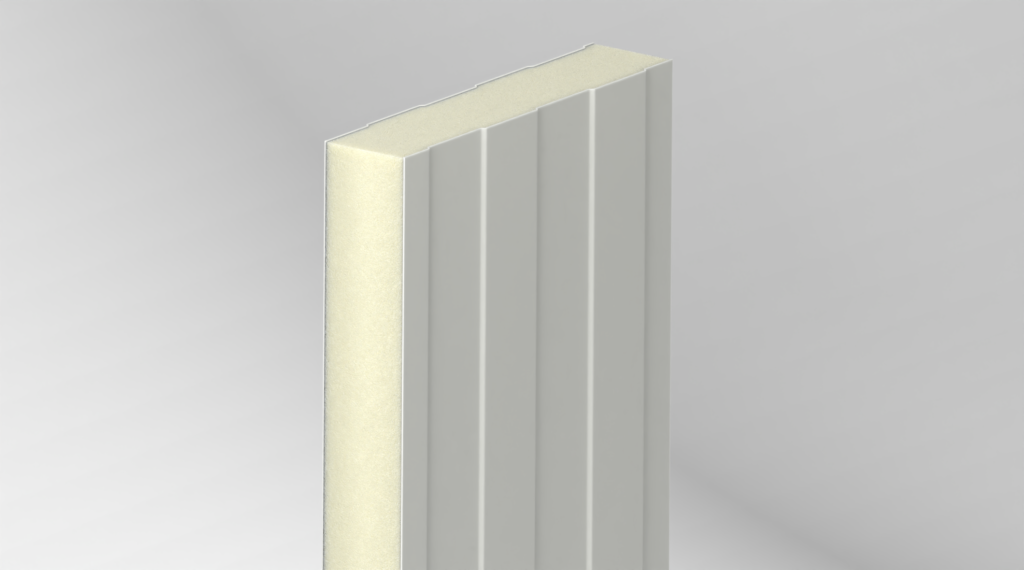

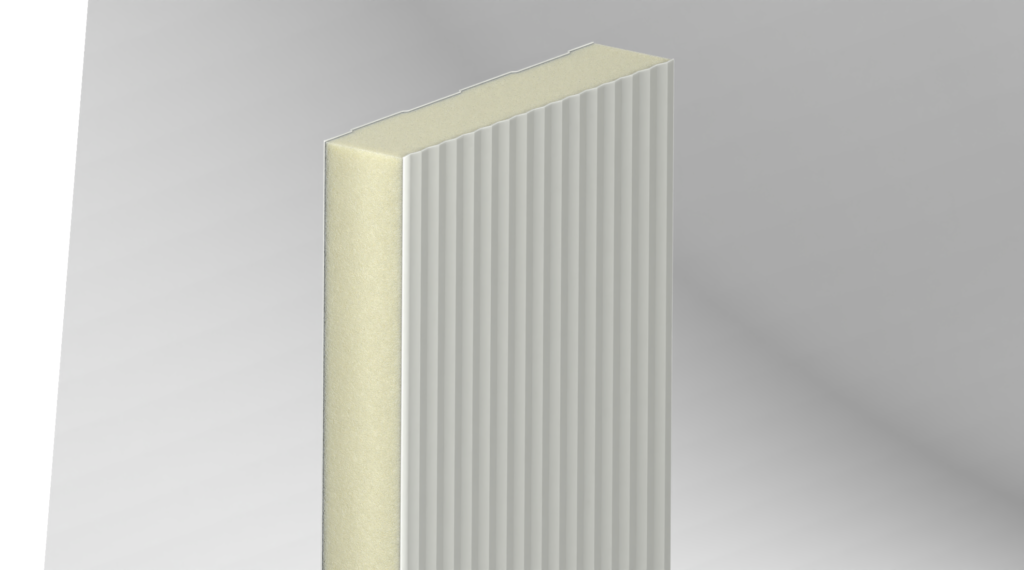

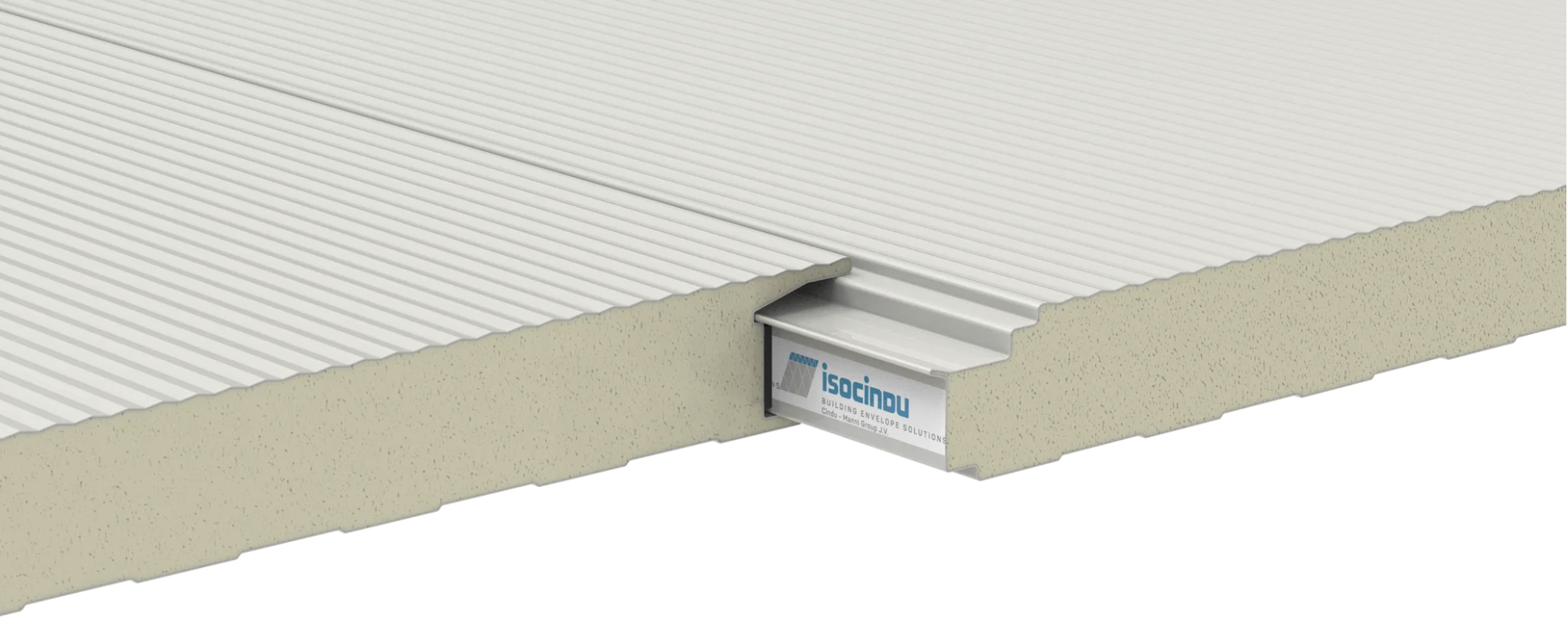

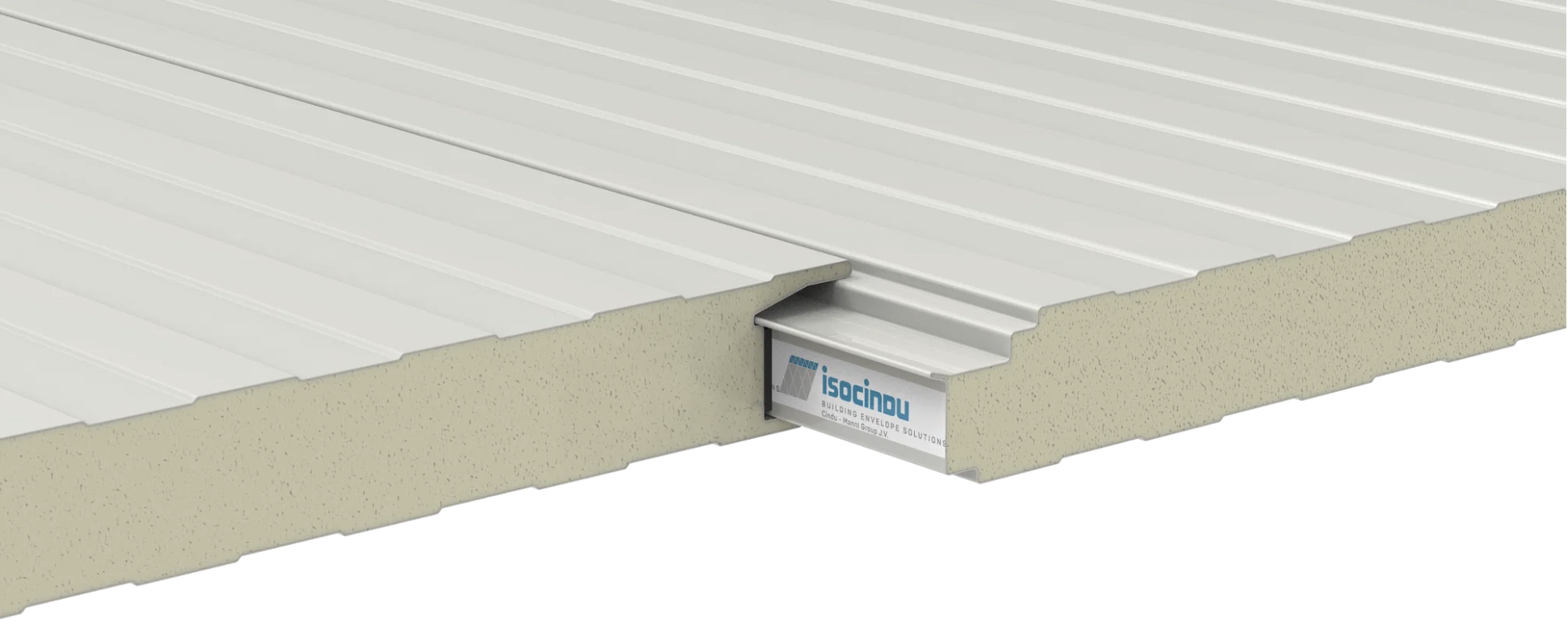

Face Profiles
Specifications
Length : Maximum of 53″
Width: 39 3/8 “
Thickness: 1.63″ 2″ 2.5″ 3″ 4″ 5″ 6″ 8″
Foam Core: PUR, PIR, PIR R+, Leaf (best R-value) 2.62-2.49 LB/FT^3
Joint Type: Tongue and Groove – hidden
Gasket: Open Cell Gasket
Steel Gauge: External: 22, 24, 26 – Internal: 22, 24, 26, 28
Coating: Polyester Std. G60, Kynar G90, Stainless Steel 314
Std. Coating: USDA Approved
Orientation: Vertical / Horizontal
