ISOFort: The Right Joint -

Product Description

The new Isofort insulating panel is composed of pre-painted steel bilaminate and rigid polyurethane (PUR) or polyisocyanurate (PIR) foam. It incorporates an advanced double gasket system with internal and external mechanical seals, ensuring exceptional performance and increased load-bearing capacity.
Its tongue and groove design allows for secure fastening with concealed hardware, and is available in thicknesses from 2 ½“ to 8”, as well as in 22, 24 and 26 gauge.

Design Flexibility

Choosing the right panel width allows for a cleaner, more continuous appearance, with fewer visible cuts and seams.

Efficiency and Sustainability

Fewer on-site cuts mean less waste, savings in materials and labor, and more sustainable construction

Fast Installation

The correct width speeds assembly, reducing on-site time, especially useful on large-scale projects.

Better Thermal Performance

Fewer joints = less risk of thermal bridging and leakage, improving building energy efficiency.

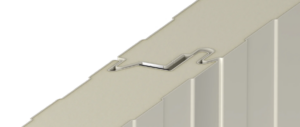

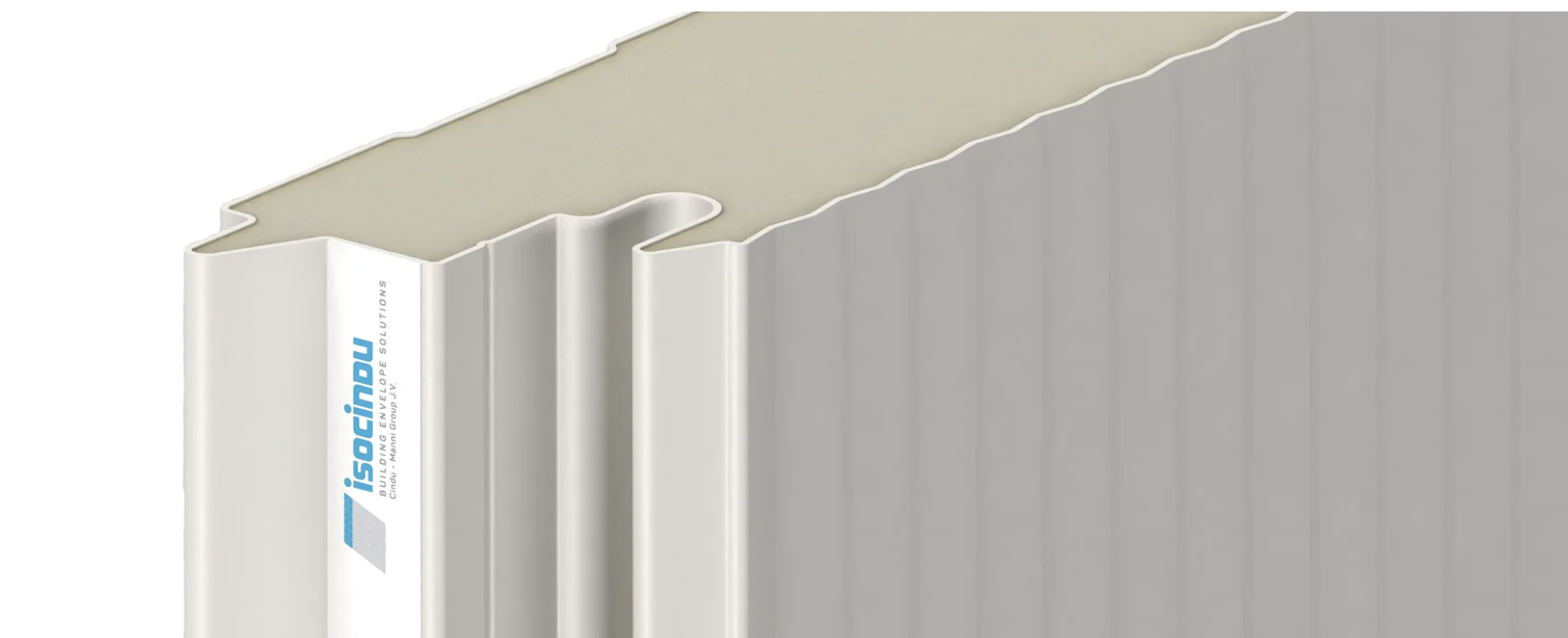

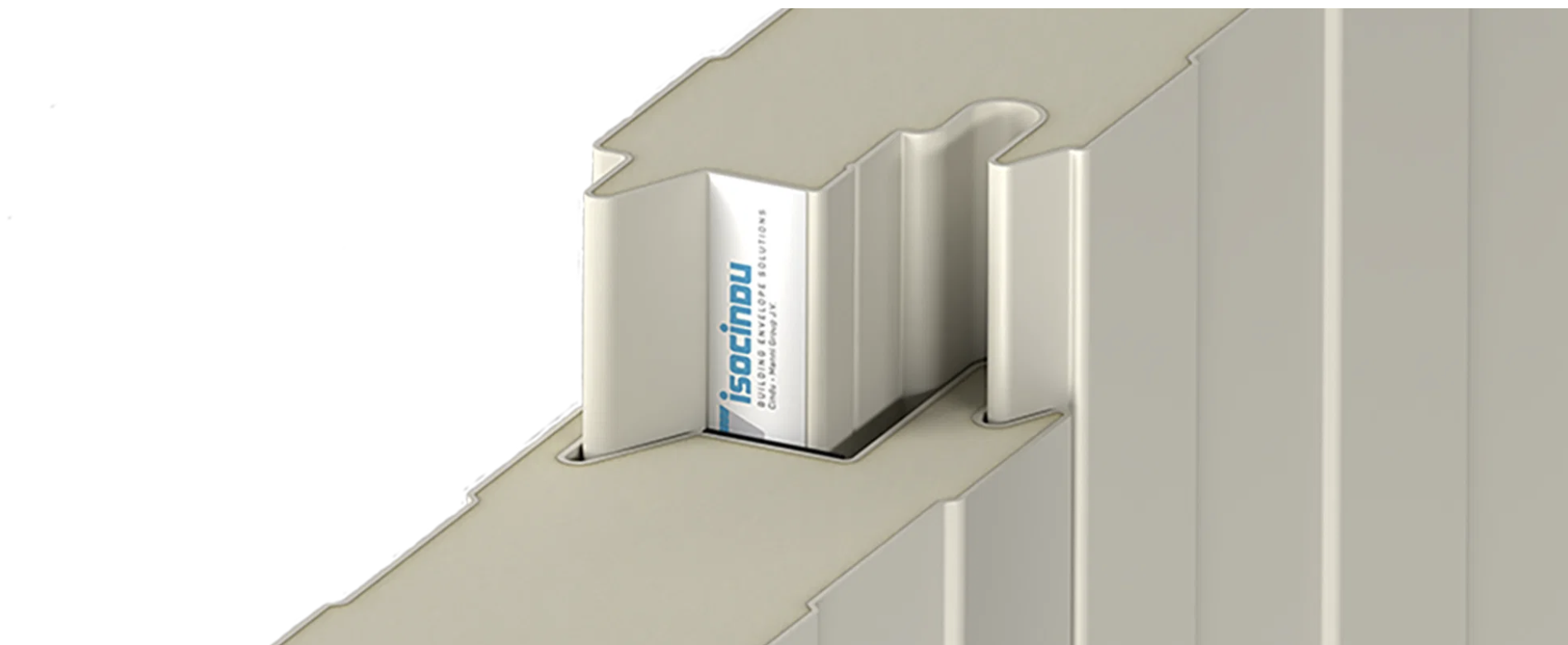

Double Joint Properties

Prevents leaks
The double joint forms a labyrinth-style barrier that physically blocks air intrusion during thermal expansion and contraction, ensuring long-term hermeticity—particularly critical for refrigeration applications.

Continuous moisture, vapor and water barrier
Its labyrinth configuration creates an uninterrupted seal against wind-driven rain, condensation and vapor intrusion.

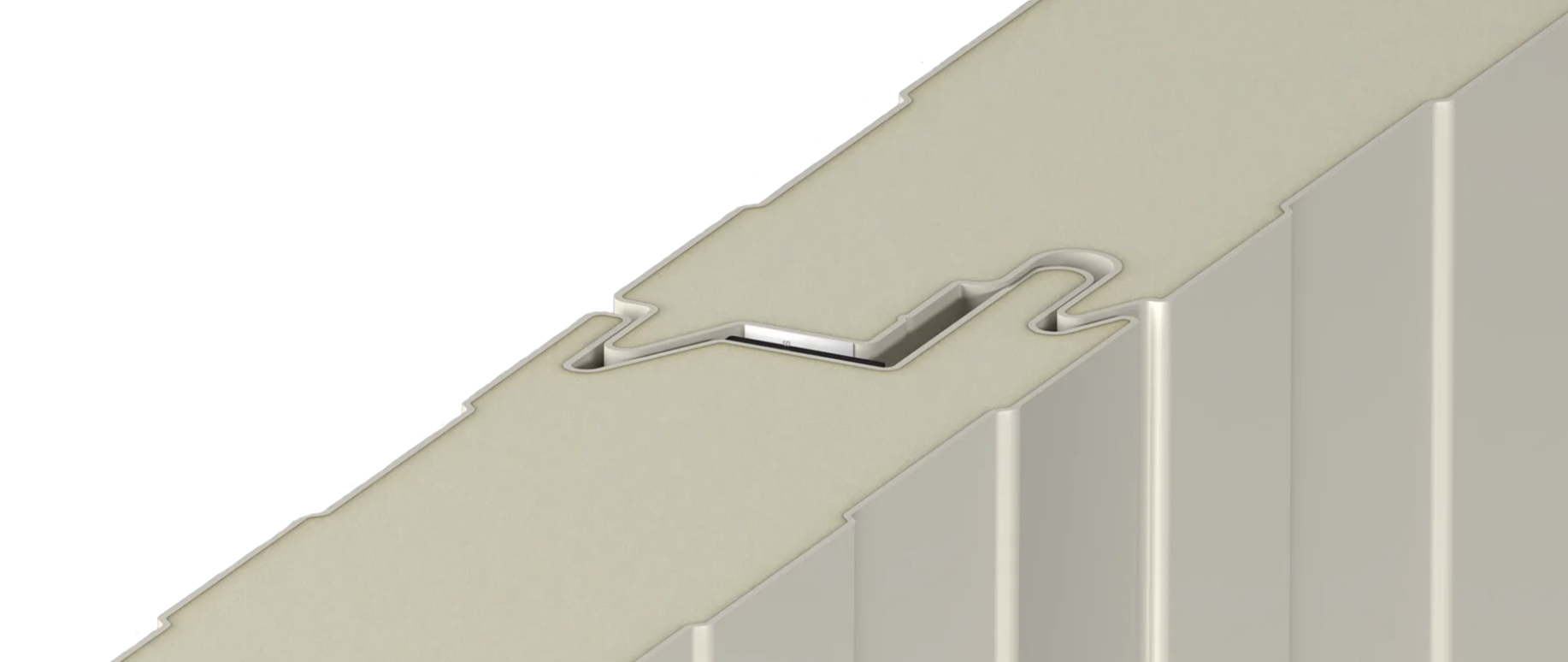

Concealed fasteners
All fasteners are hidden within the joint, producing a smooth, uninterrupted surface that enhances architectural appearance and eliminates potential weak points at the panel face.

Structural integrity
Isofort’s double joint panel is rigidly designed to resist air infiltration and water penetration, providing a strong and durable envelope.

Cold-storage hermeticity
In refrigerated facilities, the double joint supports oxygen-reduction systems by preventing even minor leaks, safeguarding sensitive, automated warehouse environments.

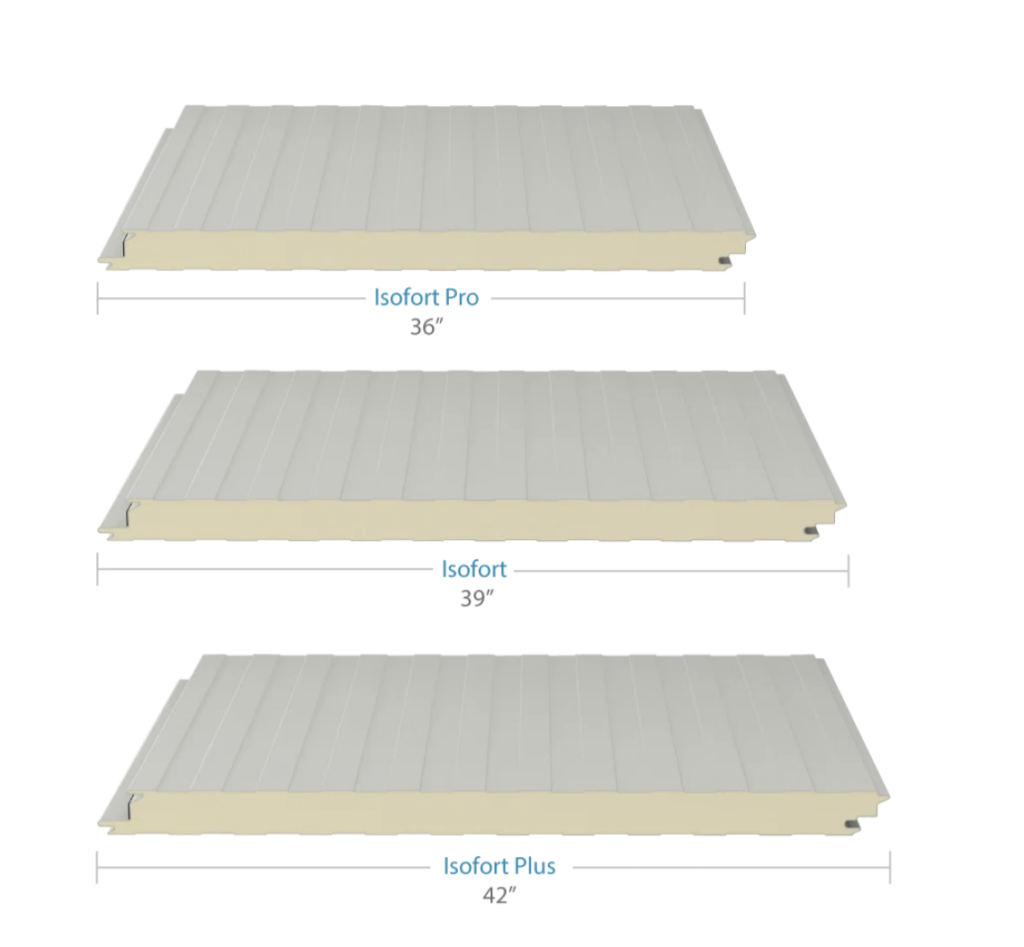

Available in 3 widths

*Isofort Pro: 36“ (914.4 mm)
*Isofort: 39” (990.6 mm)
*Isofort Plus: 42″ (1066.8 mm)

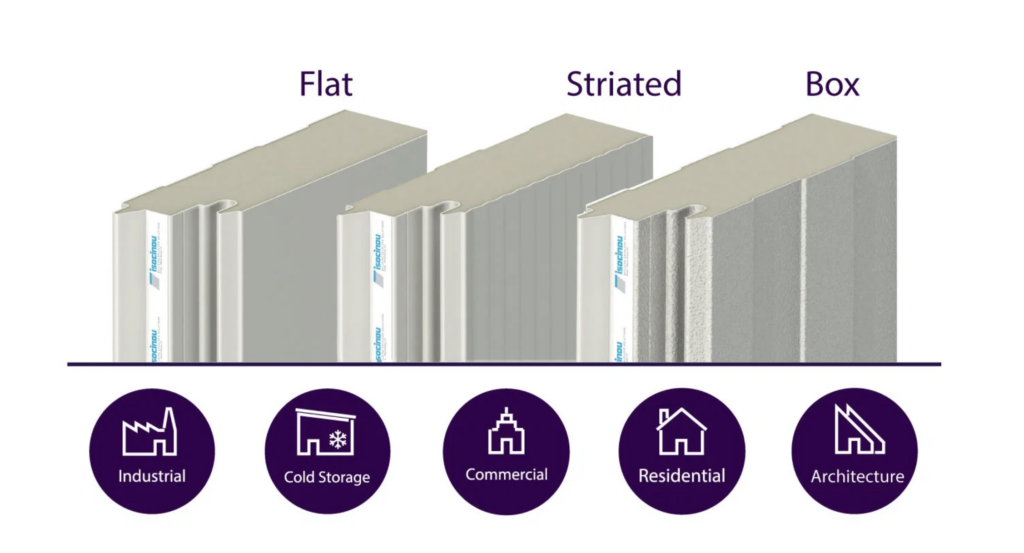

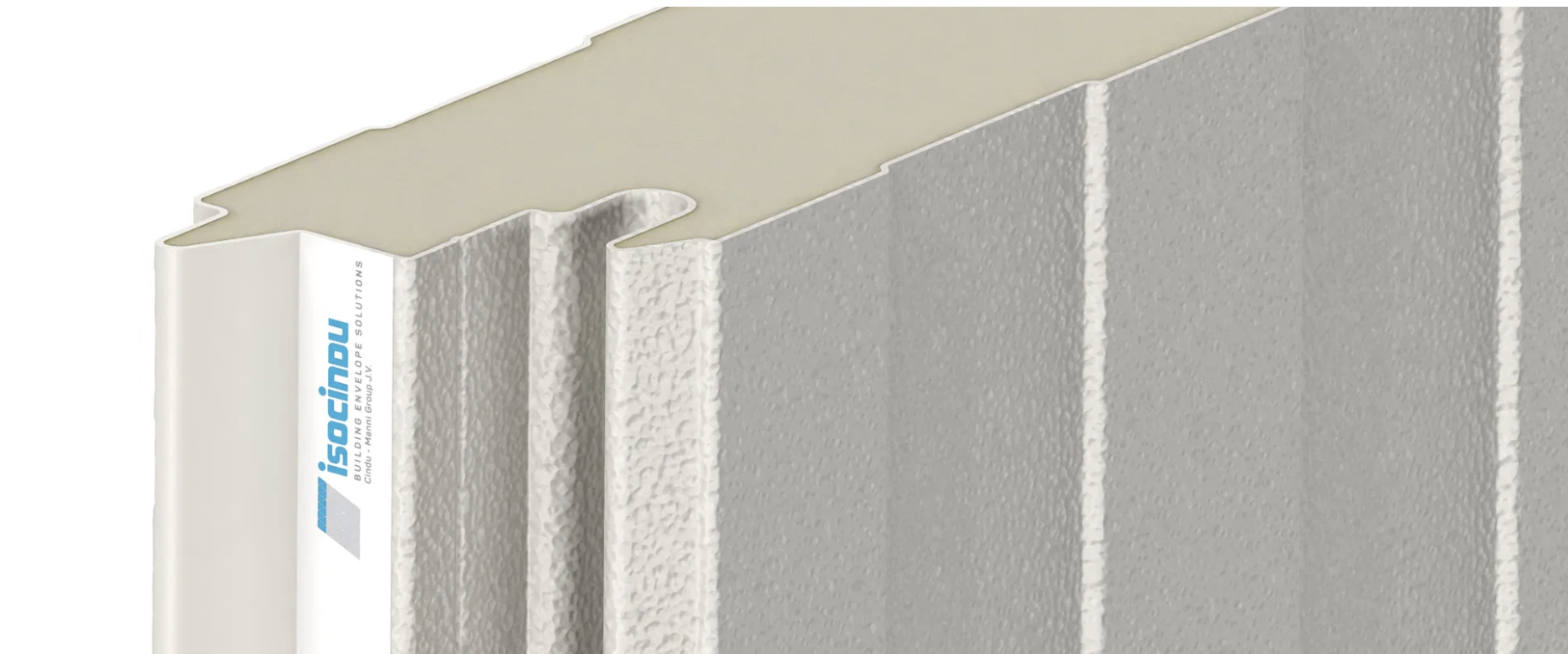

It has three profiling options for the internal and external faces: box, plissé and piano.

These panels are designed for high specification projects that require resistance to extreme weather conditions and superior airtightness.

Specifications

Length : Maximum of 53″

Width: ISOFort Pro 36″ / ISOFort 39″ / IsoFort Plus 42″

Thickness: 2.5″ 3″ 4″ 5″ 6″ 8″

Foam Core: PUR, PIR, PIR R+, Leaf (best R-value) 2.62-2.49 LB/FT

Joint Type: Tongue and Groove – hidden

Gasket: Open Cell Gasket

Steel Gauge: External: 22, 24, 26 – Internal: 22, 24, 26, 28

Coating: Polyester Std. G60, Kynar G90, Stainless Steel 314

Std. Coating: USDA Approved

Orientation: Vertical / Horizontal
