Product Description

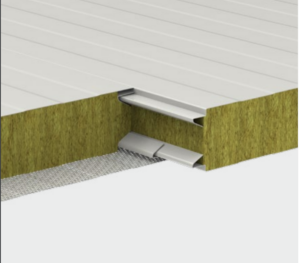

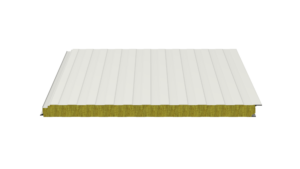

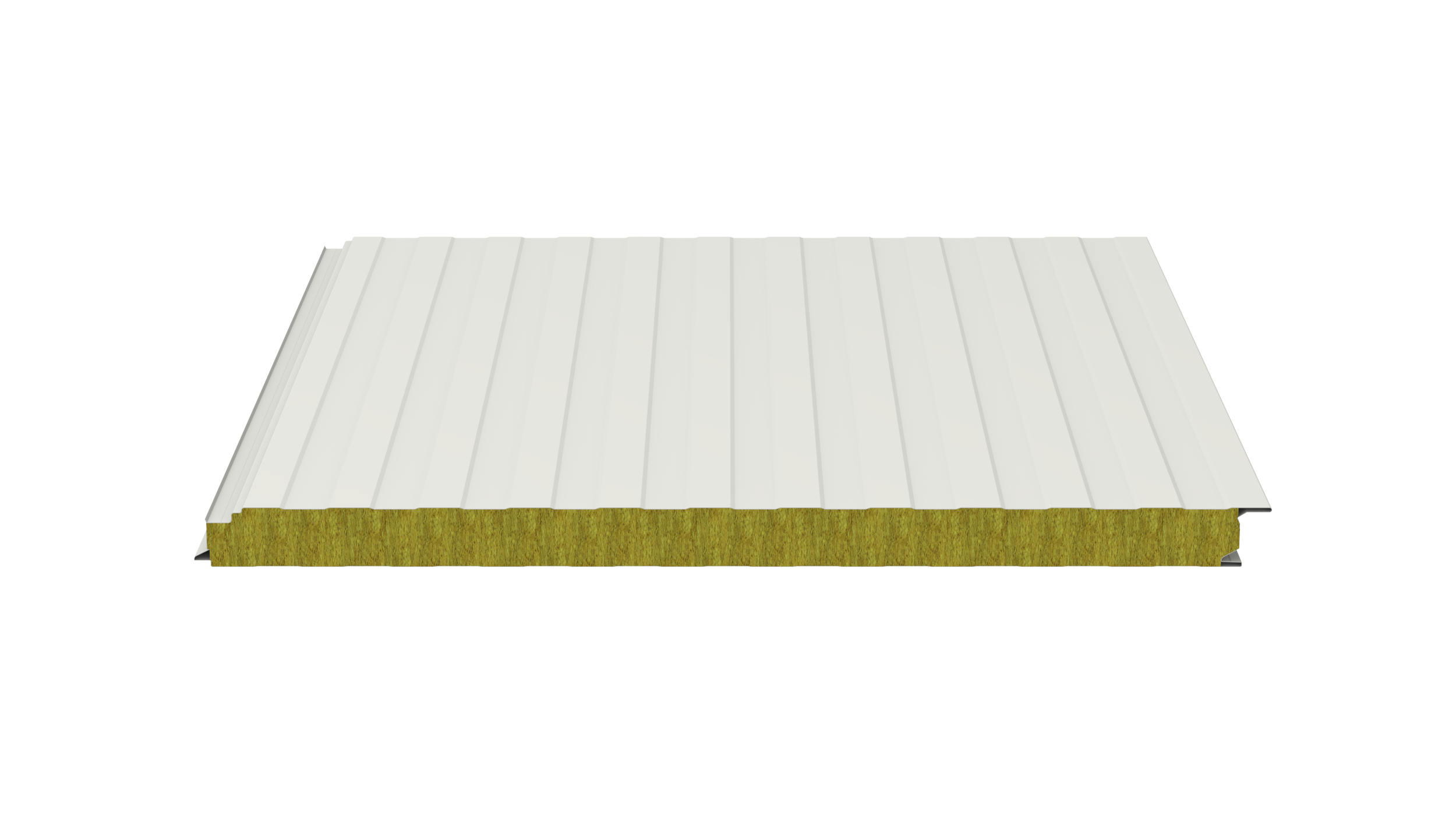

Self-supporting panel of double steel sheet, with mineral wool core. The tongue-and-groove joint is concealed by through-bolts and washers along the supports. The internal micro-perforated steel sheet increases the acoustic insulation and absorption of the panel.
Isofire wall fono has an internal support formed by a micro-perforated sheet, with the main function of increasing the sound-absorbing performance of the panel, reducing decibel levels improving interior comfort.
Benefits
Non Combustible
– Acoustic Insulation and absorption
– Fire reaction according to class A2-s1-d0 – Superior acoustic performance
Designed to provide fire protection from 1 to 3 hours for industrial and commercial buildings
Suitable For
Industrial
Cold Storage
Commercial
Architectural
Specialized
Face Profiles
Specifications
Length : Maximum recommended 40″
Width: 39 3/8 “ – 100 cm
Thickness: 50*, 60*, 80*, 100, 120, 150, 170, 200 (mm)
Foam Core: Mineral Wool – 100kg/m^3
Joint Type: Tongue and Groove – Exposed
Gasket: Open Cell Gasket
Steel Gauge: External: 0.5-0.8 mm – Internal: 0.5-0.8mm
Coating: Polyester Std. G60
Std. Coating: USDA Approved
Orientation: Vertical / Horizontal
