Product Description

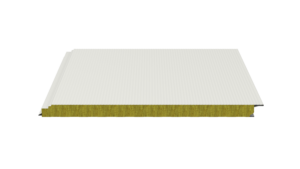

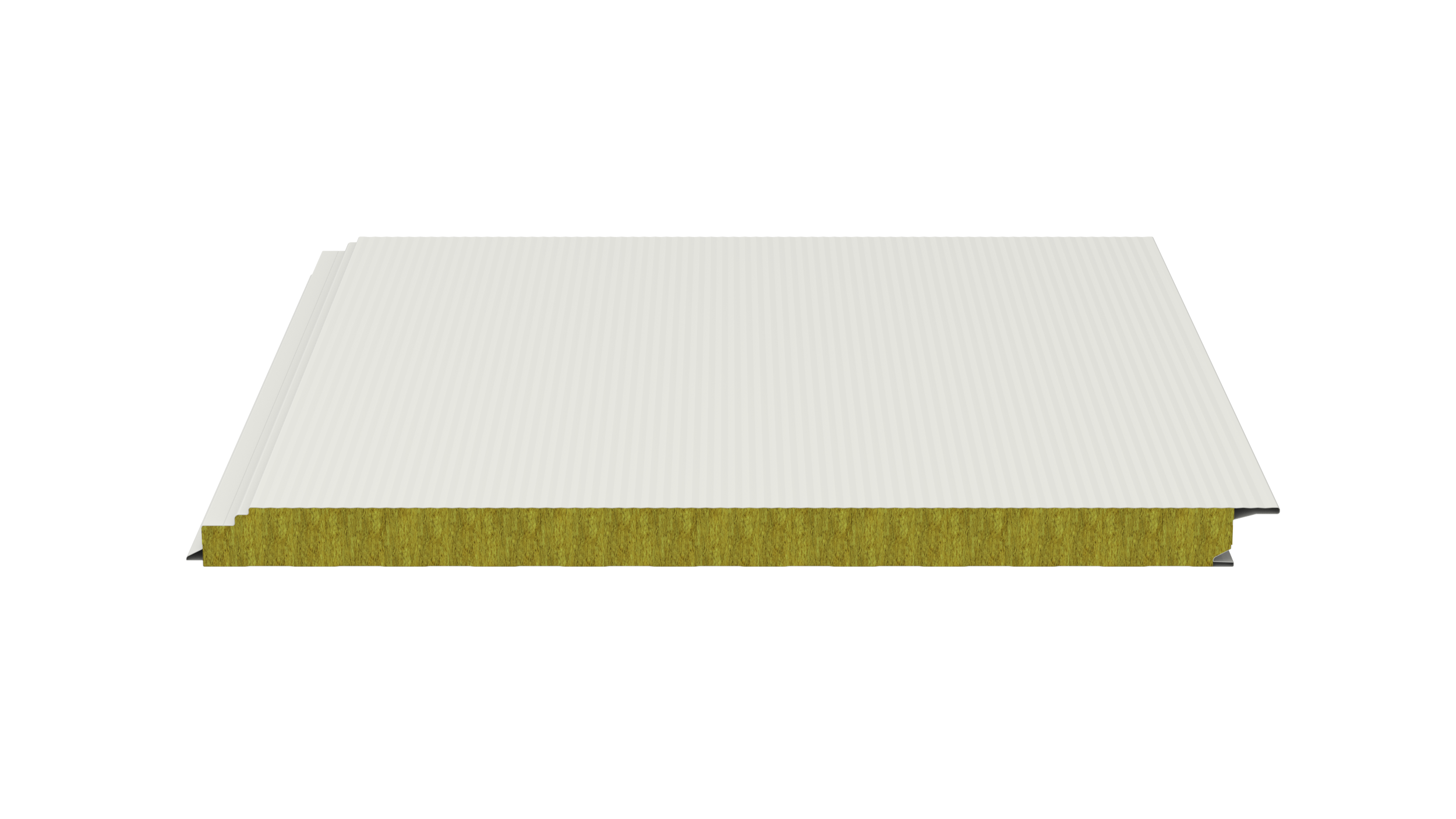

Self-supporting wall panel with double steel sheet and mineral wool core. The tongue-and-groove joint is made by exposed through screws and fasteners along the supports.
Isofire Wall is a insulated metal panel used in industrial and commercial building walls. It has tongue-and-groove joints and visible fastening. The mineral wool insulation makes it an excellent fire resistant.
Benefits
– Non combustible
– Fire Resistant
– Acoustic insulation
– Versatility to be installed vertically or horizontally – Reaction to fire according to A2-s1-d0 class
Designed to provide fire protection from 1 to 3 hours for industrial and commercial buildings
Suitable For
Industrial
Cold Storage
Commercial
Architectural
Specialized

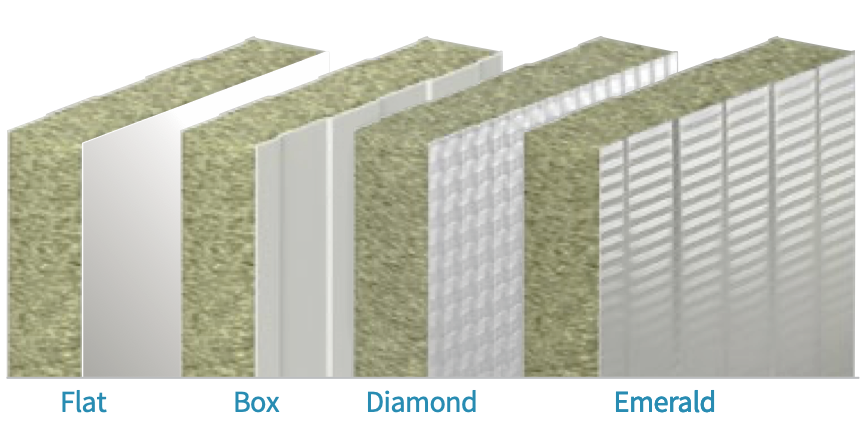

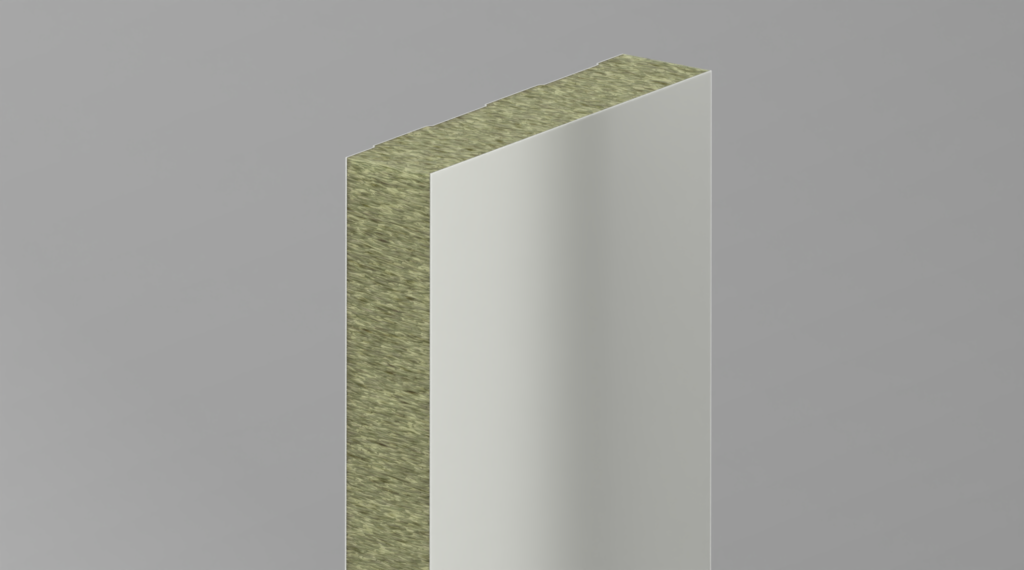

Face Profiles
Specifications
Length : Maximum recommended 40″
Width: 39 3/8 “ – 100 cm
Thickness: 50*, 60*, 80*, 100, 120, 150, 170, 200 (mm)
Foam Core: Mineral Wool – 100kg/m^3

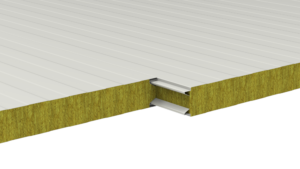

Joint Type: Tongue and Groove – Exposed
Gasket: Open Cell Gasket
Steel Gauge: External: 0.5-0.8 mm – Internal: 0.5-0.8mm
Coating: Polyester Std. G60
Std. Coating: USDA Approved
Orientation: Vertical / Horizontal
