Product Description

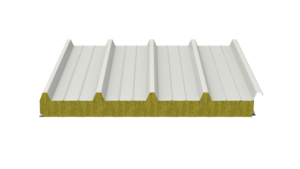

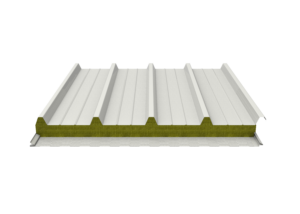

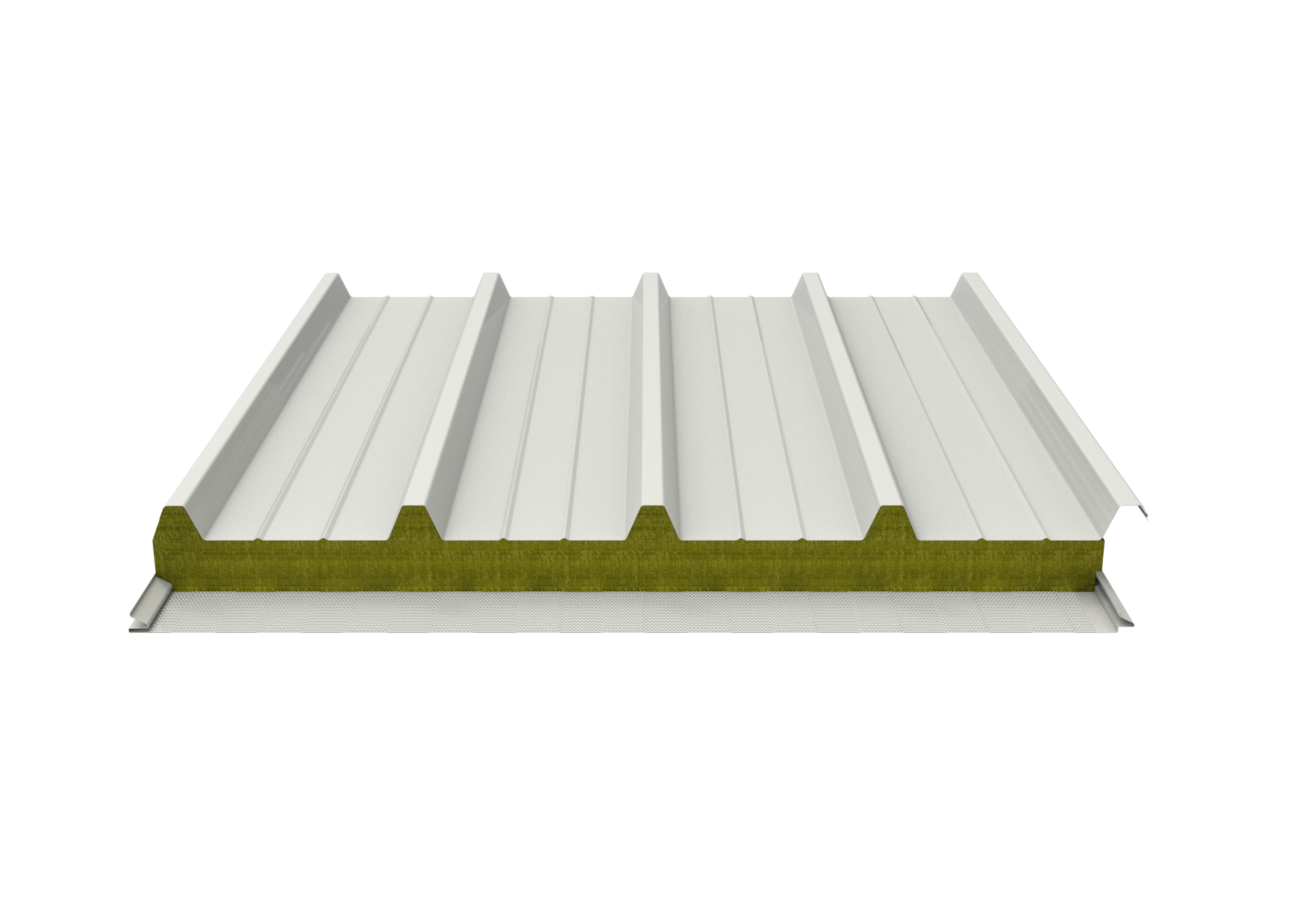

Self-supporting roof panel with double steel sheet and mineral wool core, for roofs with a slope of not less than 7%. 5-ridge profiled external sheet to increase resistance for static and dynamic loads. Visible fastening and clips with gasket.
Isofire Roof is a roofing panel suitable for new construction and renovation of industrial and commercial buildings. The rock wool insulation provides strength and protection in case of fire.
Benefits
– Double sheet metal faced panel
– Fire resistant mineral wool

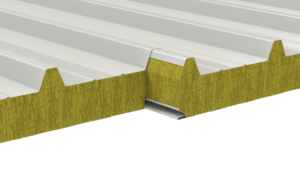

– Exposed fastening joint
– Ribbed profile for greater strength
Designed to provide fire protection from 1 to 3 hours for industrial and commercial buildings
Suitable for
Industrial
Cold Storage
Commercial
Architectural
Specialized
Specifications
Length : Maximum recommended 40″
Width: 39 3/8 “ – 100 cm
Thickness: 50*, 60*, 80*, 100, 120, 150, 170, 200 (mm)
Foam Core: Mineral Wool – 100kg/m^3
Joint Type: Tongue and Groove – Exposed
Gasket: Open Cell Gasket
Steel Gauge: External: 0.5-0.6 mm – Internal: 0.5-0.6 mm
Coating: Polyester Std. G60
Std. Coating: USDA Approved
Orientation: Roof and Wall
