Product Description

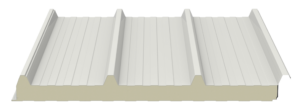

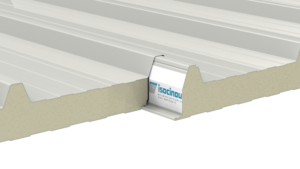

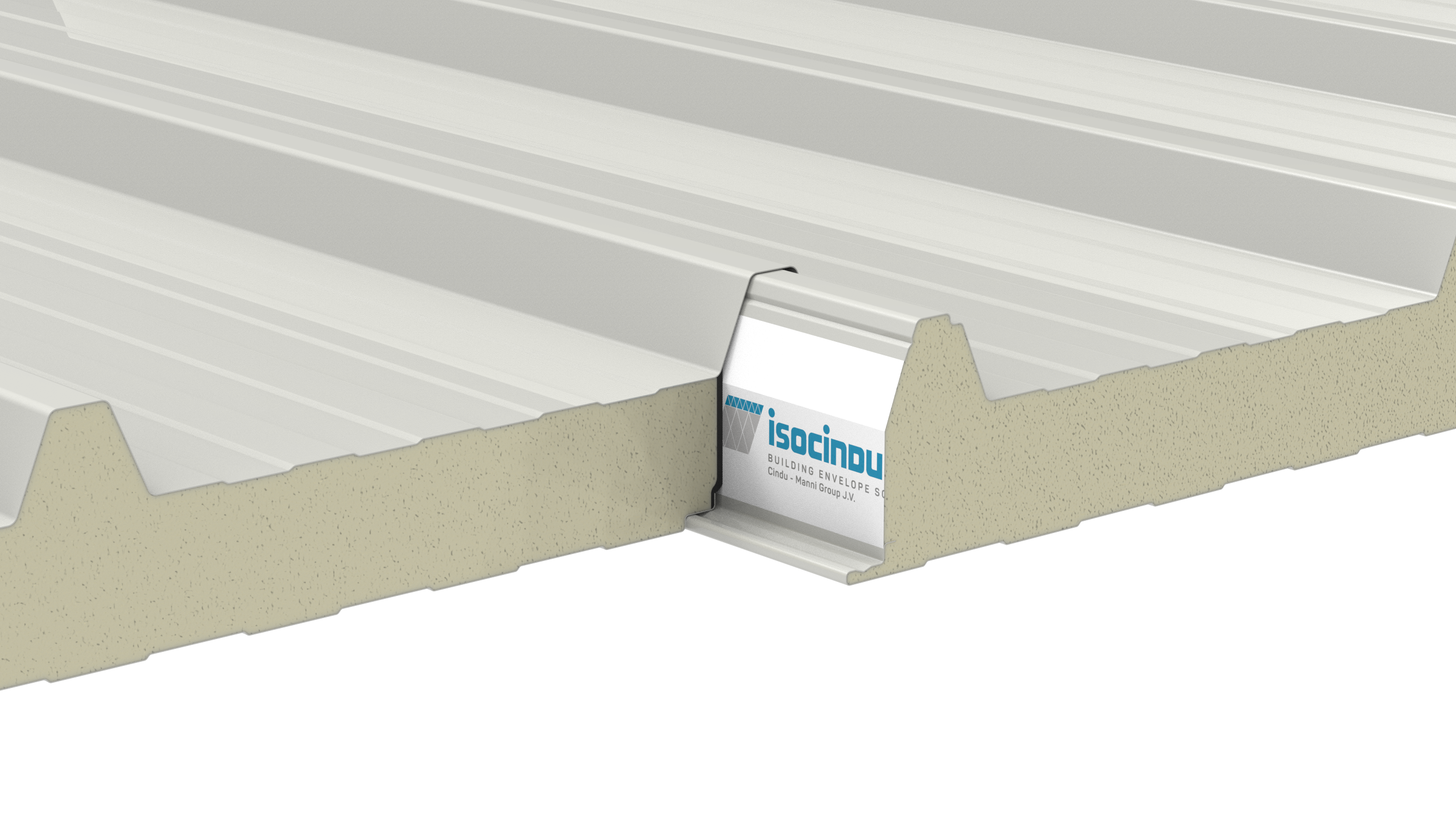

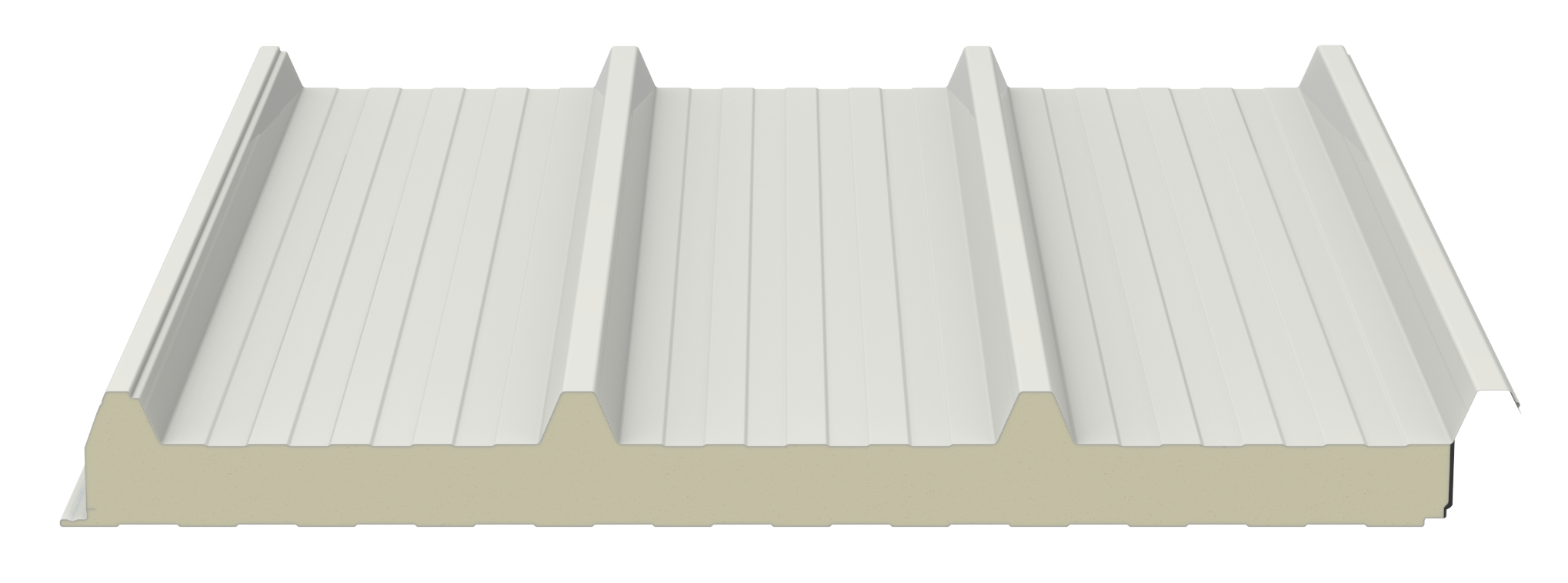

A double-steel sheet roof panel, insulated with rigid foam. This design caters to 2% min slope roofs. External face with 4 trapezoidal rows to enhance static and dynamic forces. Exposed fastening system that includes saddle clips and cap ribs for concealed fastening and weather tightness. Applicable with several roofing sub-structures.
Especially suited for use in industrial, warehouses, zootechnical, and residential construction. Versatility, load resistance and easy installation make Isocop a reliable solution, from new construction to roof refurbishing. Available with butyl seal placed in plant.
Benefits
Rust resistance
– High mechanical strength
– Hygienic and easy wash material
– Mold and humidity resistance
– Gasket barrier to prevent vapor leaks
Suitable For
Industrial
Cold Storage
Commercial
Architectural
Specialized
Specifications
Length : Maximum of 53″
Width: 39 3/8 “
Thickness: 1″ 1.5″ 2″ 2.5″ 3″ 4″ 5″ 6″ 8″
Foam Core: PUR, PIR, PIR R+, Leaf (Best R-Value) 2.62-2.49 LB/FT^3
Joint Type: Tongue and Groove – Exposed
Gasket: Open Cell Gasket
Steel Gauge: External: 22, 24, 26 – Internal: 22, 24, 26, 28
Coating: Polyester Std. G60, Kynar G90
Std. Coating: USDA Approved
Orientation: Roof and Wall
