Product Description
A double-steel sheet wall panel, insulated with rigid foam. The tongue-and-grove joint is completed by exposed fasteners and saddle clip. External face available in striated, box and flat profiles. The internal face is standard with the box profile. Available in 451⁄4” width, perfect size for cold storage.
Isobox is a sandwich panel for coating used in walls of industrial buildings, and internal partitions, suitable for cooling chambers. Available with butyl seal placed in plant.
Benefits
– Up to 8 ”thick
– Available in 451⁄4” width
– Gasket barrier to prevent vapor leaks
– High mechanical strength
– High thermal resistance for controlled temperatures
Suitable For
Industrial
Cold Storage
Commercial
Architectural
Specialized

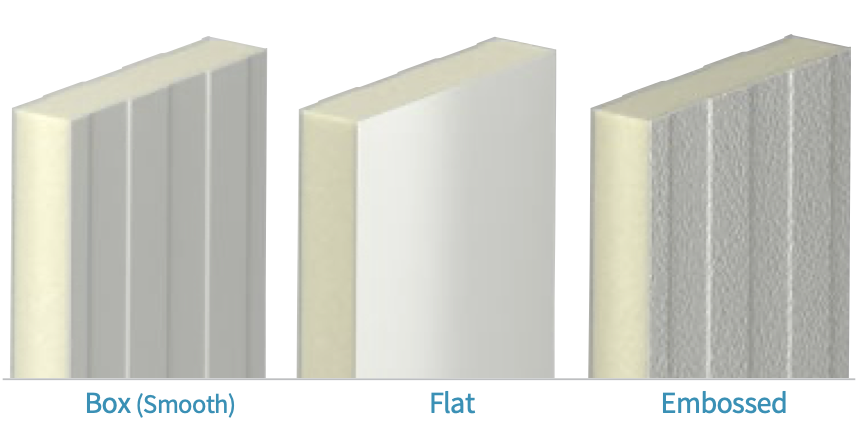

Face Profiles
Specifications
Length : Maximum of 53″
Width: 39 3/8“ / 45 1/4″
Thickness: 1.63″ 2″ 2.5″ 3″ 4″ 5″ 6″ 8″
Foam Core: PUR, PIR, PIR R+, Leaf (best R-value) 2.62-2.49 LB/FT^3
Joint Type: Tongue and Groove – Exposed
Gasket: Open Cell Gasket
Steel Gauge: External: 22, 24, 26 – Internal: 22, 24, 26, 28
Coating: Polyester Std. G60, Kynar G90, Stainless Steel 314
Std. Coating: USDA Approved
Orientation: Vertical / Horizontal
